High Level of Standard Features

Enormous versatility with comprehensive basic equipment

The comprehensive basic equipment and mature solutions ensure enormous versatility for a wide variety of special applications.



Coordinated performance profile:

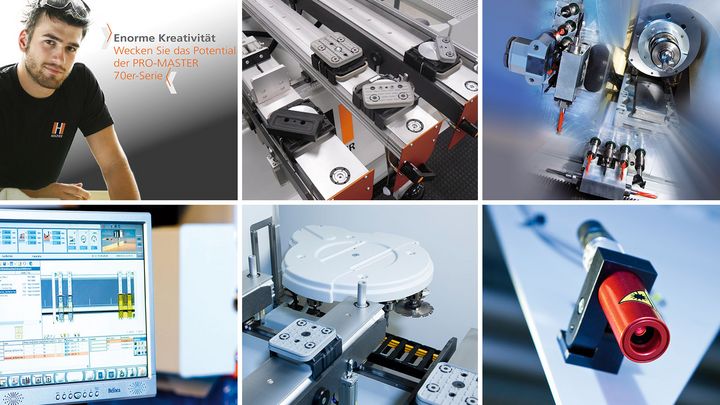

  • Three precise and dynamically controlled axes – can be upgraded to include a fully interpolating C axis.
  • User-friendly software as complete package with CAMPUS machine and office license.
  • CabinetControl Base - allows you to design furniture and create complete CNC programs in minutes with just a few mouse clicks.
  • 6.5-kW Spindle with ceramic bearing and integrated torque support for changeover units
    (C axis and 11 kW spindle optional for even more power).
  • 14-Spindle drilling head with integrated grooving saw in X direction
    (optionally available with 24 spindles for high drilling capacity).
  • 12-Position traveling disk tool changer for effective pendular processing.
  • Six stable, high precision consoles with eight precise stops and four charging aids.
  • Laser pointer for precision position of vacuum suction cups and for tracing part contour.
  • Free selection between 3-field foot mats or safety bumpers for highly efficient pendular processing.
