PRO-MASTER Black Matrix CNC machining center from HOLZHER

CNC PRO-MASTER 7225 Black Matrix machining center: Excellent machining results with 5 interpolating axes

5-axis PRO-MASTER Black Matrix CNC machine from HOLZHER - wood and panel machining at the highest level

Die PRO-MASTER 7225 Black Matrix offers enormous flexibility and maximum ease of use. This new 5 axis CNC machining center features high quality components for many years of precision work with maximum operating reliability. This includes covered, hardened and ground linear guides on all axes. Moreover, the optimized, extremely rigid machine and traveling stands ensure excellent machining results. The precision ball-bearing spindles for the Z axis and the beveled, ground gear racks in the X and Y directions guarantee high precision machining over the entire machine length. And best of all: with HOLZ-HER CNC machines you get a 10 year guarantee on all linear guides!

The PRO-MASTER 7225 Black Matrix has state-of-the-art control and drive technology with powerful direct drive on all fully interpolating axes. Powerful cutter units with excellent performance curves and maximum operating smoothness allow your creativity to be realized in the form of products with maximum machining quality. The drilling unit is laid out for short cycle times and highly varying types of processing.

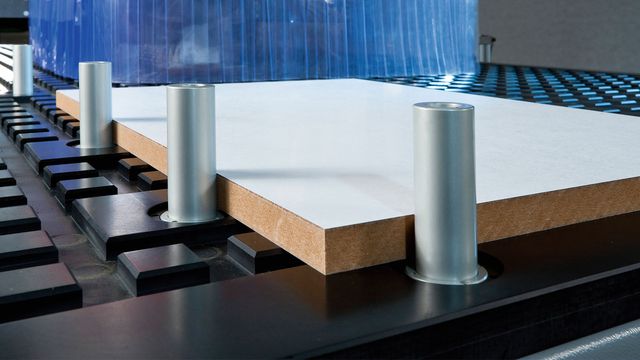

The precision milled “High Flow Vacuum Table” holds workpieces securely. The stop pins are anodized and run in hardened, readjustable eccentric bushings for permanently exact zero points. Traveling tool changers and stationary pick-up changers ensure short tool change times.


Technical Details

Powerful 5-axis "Matrix” cutter unit

Powerful 5-axis cutter unit with up to 17 kW
Powerful 5-axis cutter unit for Pro-Master Black Matrix
Powerful 5-axis cutter unit: Gimbal-mounted machining head with up to 17 kW

The "fifth dimension" in woodworking

The gimbal-mounted machining head with up to 17 kW (standard 10 kW) ensures precise guidance for complex curled or curved parts such as stair railings or furniture or model shapes with complicated design. The compact, powerful and fully interpolating machining head operates at speeds up to 24,000 rpm its ceramic bearings and liquid cooling allow it to work under extremely high loads.

The special feature of the optional 17 kW spindle (S6) is the PRO-TORQUE technology, which automatically locks the A and C axes mechanically, allowing extremely high torque at the spindle. Optimum evacuation is achieved by the evacuation hood with 8 adjustment positions.

CabinetControl - for programming your furniture simply

Simple furniture programming
The high quality, user-friendly machine control from HOLZ-HER
Generates CNC machining program automatically at the touch of a button

CabinetControl – software for simple furniture designing

Our high quality, user-friendly HOLZ-HER machine control system is an integral part of the machine’s design. The equipment package includes CAMPUS / NC Hops with office and machine license and full-fledged aCADemy CAD software. The integrated CabinetControl Base furniture design software rounds out this premium package. This offer provides the prerequisites for effective machining and convenient operation with barcode interface, manual control unit, import features and much more.

  • CabinetControl Base included as standard feature in software package.
  • Design of furniture.
  • Views can be represented in 2D or 3D.
  • Quick adaptation to individual desires of furniture buyers.
  • Perfect presentation of furniture.
  • Automatic completion of cutting plans.
  • Generates CNC machining program automatically at the touch of a button.
  • An optional professional version, the CabinetControl PRO, is also available with library, calculation, data transfer to pressure beam saws, etc.
  • Also ideal for planning kitchens and rooms.

CAMPUS 5-axis module - 3D simulation

CAMPUS 5-axis module for simultaneous cutting

3D material removal simulation as standard feature

Even the basic versions of the PRO-MASTER machines are equipped with our mature 3D material removal simulation feature. The CAMPUS 3D machine simulation can be ordered as an optional feature. This offers:

  • Collision monitoring
  • Three-dimensional simulation of machine motions and material removal on workpiece
  • Graphic representation of machining head, tool and tool collet, table and clamping device.

Genuine, high speed, 5-axis cutter with CURVE 3D

For 5-axis power users, the option CURVE 3D Performance package offers additional advantages. This allows the first class performance of the 5-axis spindle to be used for effective high speed cutting with perfect results. The CURVE 3D module is also ideal for increasing the power in combination with CAD/CAM software from other suppliers and offers perfect spline interpolation.

CAMPUS 5-axis module for simultaneous cutting

The NC HOPS supplement module supports interpolating 5-axis machining in many areas such as:

  • 5-axis simultaneous cutting.
  • Support of 5-axis interpolation with top and bottom guide curves (simultaneous machining).
  • Two contours on defined layers are interpreted as 5-axis machining.

Integrated drilling head

Integrated drilling head with 16 or 24 spindles

The PRO-MASTER is perfectly equipped with drilling heads for optional integration.

16 Spindles

  • Drilling unit with 10 vertical spindles (X = 6 / Y = 4)
  • Six horizontal spindles (two double drilling spindles in X direction / one in Y direction).
  • Integrated grooving saw in X direction.
  • The pressure booster included as a standard feature provides even more power for the drilling unit.

24 Spindles

  • Drilling unit with 18 vertical spindles (X = 11 + 2 / Y = 6)
  • Six horizontal spindles (two double drilling spindles in X direction / one in Y direction).
  • Integrated grooving saw in X direction.
  • The pressure booster included as a standard feature provides even more power for the drilling unit.

Machining head - optimized for practice

Drilling, sawing, cutting, grooving – the PRO-MASTER machining head

Drilling, sawing, cutting, grooving – the machining head on the PRO-MASTER series is equipped for multifunctional use and is perfect for rational production of simple and complex case parts in continuous operation.

The integrated and compact design makes this machining head a paragon for dynamic action, acceleration and positioning accuracy. Even in the basic equipment, the PRO-MASTER series offers a wide machining spectrum.

High-Flow Nesting Table

Highly flexible nesting table - Nesting technology for rational production
Highly flexible nesting table - Nesting technology for rational production
Highly flexible nesting table - Nesting technology allows optimized processing and cutting of panel materials.

High-Flow Nesting Table

Nesting technology for rational production. With the nesting process, a porous protective panel – usually a thin MDF panel – is held down on the machine table by a vacuum. It provides a large surface for suction and serves to support the workpieces to be processed. Nesting technology allows optimized processing and cutting of panel materials.

  • For formatting nesting cutting plans on the nesting table.
  • Workpieces can be processed with manually positioned suction cups.
  • The HOLZ-HER nesting table has small matrix dimensions – of only 50 mm – to ensure maximum vacuum flux over the entire table surface.
  • 4 Machining fields front (stroke 150 mm) and rear (stroke 70 mm) with stops





Plenty of space for all tools.

Traveling disk tool changer with 12 or 18 tool positions
14 or 16-position linear tool changer
Plenty of space for a wide variety of tools

The traveling disk tool changer with 12 or 18 tool positions ensures short changeover times and maximum productivity. A special pick-up tool changer is available for saw blades with dia. up to 350 mm.

Another supplementary feature is a pick-up tool changer with two positions for large angle gears as well as 14 or 16-position linear tool changer for an extensive range of tools.

Tool-intensive applications, such as are frequently required for window construction, are also possible with an optional shuttle type tool changer with up to 60 tool positions.

Innovative changeover units

Changeover units for highly varying applications

Your advantage for high product quality

A variety of changeover units for highly varying applications is available for all machines in the PRO-MASTER series. These range from conventional multi-spindle machines, lock box and sawing units to special applications such as hollow cutting chisels and cutting units for machining foam materials, etc.

Angular slewing gears with angle display and central angle adjustment are available for precision angle cuts and holes.

TouchLabel - overview of labels

TouchLabel - The label printer included in the package produces self-adhesive barcode labels
TouchLabel - the perfect solution for labeling

TouchLabel - the perfect solution for labeling

The 21.5 touch screen provides a perfect overview of the machining results. Simply tap the workpiece and the label printer included in the package prints out a self-adhesive barcode label.

The integrated CAMPUS module label printer allows printout of normal text as well as barcodes (barcode and 2D data matrix). Naturally, your barcode labels can be adapted to your specific requirements with the label template editor.

Multiple circuit vacuum systems

Flexible vacuum zones for variable panel sizes

Flexible vacuum zones for variable panel sizes

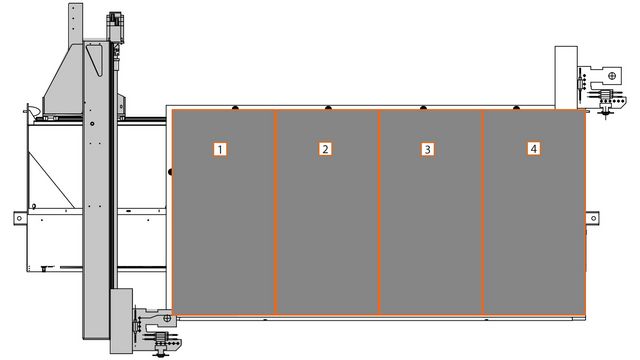

The optional multiple circuit vacuum systems offer the possibility of subdividing the nesting table into various vacuum zones with the control. This feature makes it possible to choose between 2-field, 4-field and 8-field solutions.

Ideal for adapting the machining table to various workpiece sizes with simultaneously optimized vacuum.

Perfect for special applications

CNC 5-axis Black Matrix: Useful options make it perfect for all applications
Thanks to its flexible options, the Black Matrix is laid out perfectly for machining various materials

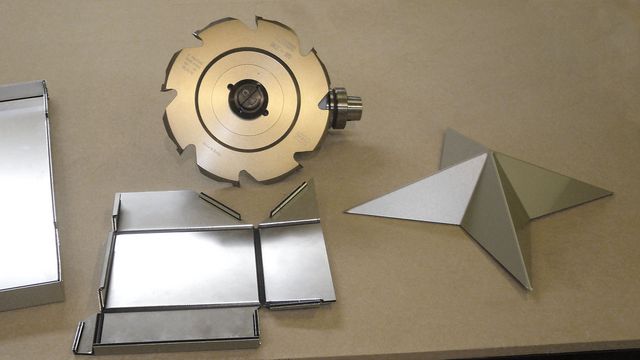

The Black Matrix is laid out perfectly for machining metals, composite materials and synthetic materials

Useful options make it perfect for all applications

Thanks to its flexible options, the PRO-MASTER Black Matrix  is laid out perfectly for processing :

  • Non-ferrous metals
  • Composite materials (e.g.: ALUCOBOND)
  • Plastics

Our "ColdGun" guarantees that your workpiece and cutters always remain cool. That is why this option also ensures extremely long tool life. As an alternative, our minimal lubrication feature also offers the possibility of using finely metered parting agents during the processing work.

The use of V-groove cutters and saw blades on HOLZ-HER changeover units also significantly reduces processing times to a minimum.

Lock case cutters for professional door production

Lock case cutters for professional door production
Effective machining on door and frame components

Lock case cutting

High performance cutting motors on the optional horizontal cutter unit make the PRO-MASTER series a must for professional door producers. On the 5-axes version, this work is of course accomplished by the cutter unit.

  • HOLZ-HER also offers a wide matching selection of reliable, high performance changeover units for all types of applications.

Laser pointers as standard feature

Laser pointers on left and right of machining head
Laser pointers on left and right of machining head
Laser pointers on left and right of machining head

Laser pointers for exact position of the suction cups or for tracing the workpiece contours, attached on the right and left sides of the machining head.

Contour laser – the complete positioning solution

Contour laser – the complete positioning solution
Contour laser – the complete positioning solution

Contour laser – projects entire workpiece contour and all required vacuum suction cups simultaneously as well as all console positions without limitation for number of lines to be projected.

Variable safety concepts

3-field foot mats or safety bumpers

State-of-the-art safety concepts give you the choice between patented 3-field foot mats or safety bumpers. This allows you to match the HOLZ-HER machining centers individually and reliably to your operating situation.

Efficient vacuum technology

Extremely powerful and efficient vacuum pumps
ECO VAC

Extremely high performance, efficient vacuum pumps ensure workpiece is held securely. These low maintenance, dry-running pumps are also distinguished by their low noise emissions and extremely low maintenance requirements.

Moreover, our intelligent ECO VAC vacuum control uses a software program to ensure that the required vacuum power is always present when several pumps are used.

Flexible evacuation

Flexible evacuation – programmable for eight positions

Flexible evacuation – programmable for eight positions

Fully automatic positioning in eight positions on machining head, for perfect adaptation of hood to workpiece height. This guarantees optimum evacuation of chips.


Options for extension

An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.
