Edgebander STREAMER 1052: Simple Handling – Maximum Productivity

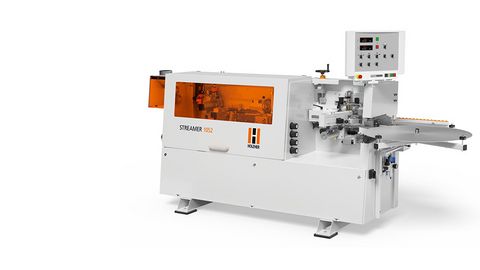

The edge banding machine Streamer 1052 from Holz-Her

The STREAMER 1052 is compact, fits into virtually any corner and is highly versatile. HOLZ-HER has engineered all of its know-how into a machine just three meters long.

The high stability and stiffness of the frame ensure precise part guidance. The machine is ready to use within the shortest possible time. Simply move into place and immediately start working efficiently – this is the idea behind the STREAMER 1052.

Getting started with professional edgebanding has never been easier.


Here is what the HOLZ-HER STREAMER series offers

Here is what the HOLZ-HER STREAMER 1052 offers

Technical Details

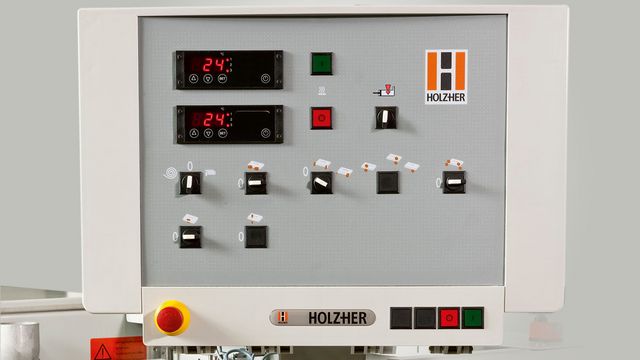

We know what you need: The HOLZ-HER control

Mit der übersichtlichen Steuerung ist Ihre HOLZ-HER Kantenanleimmaschine einfach und schnell zu bedienen

Too bad everything is not as easy to operate as our HOLZ-HER controls.

With our clear controls, your HOLZ-HER edgebander is simple to operate intuitively.

  • The HOLZ-HER GluJet system is equipped with precise temperature control for glue application over two heating circuits.
  • Simple edge feeder switch-over from cut-length to coil edging.
  • Trimming unit can be pivoted pneumatically with control panel (optional feature).
  • Selection switch for optional flat scraper (ON/OFF).

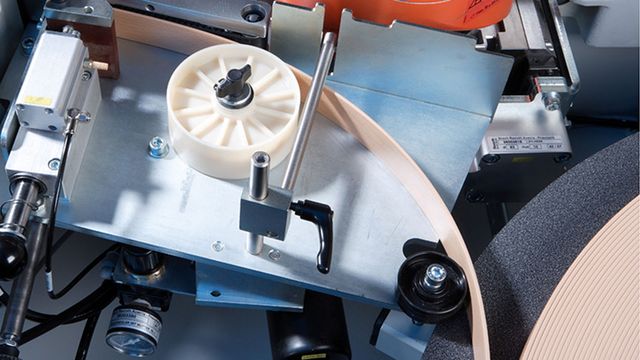

1052 Edging feed system

Fully automatic, user-friendly feeding of rolls and strips with single feed

Fully automatic, user-friendly feeder for coiled edging as well as single strip feeder. Gentle material handling for edging transport and automatic edge recognition.

The most flexible glue application system on the market

GluJet - Das flexibelste Kleberauftragssystem am Markt

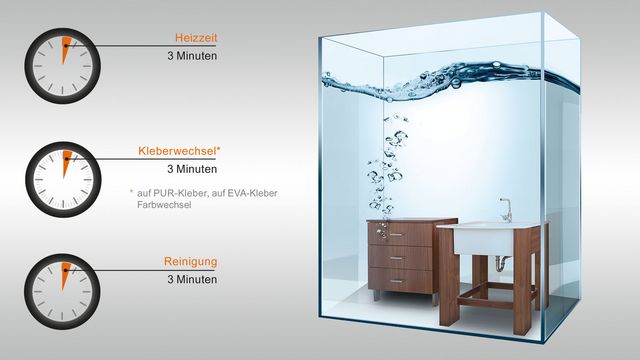

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Visual zero joints with PUR glue – allowing use in wet areas – are natural for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Druckwerk
Druckwerk

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller motor-driven, two subsequent pressure rollers.

Pneumatic, application-controlled pressure unit (optional).

Trimming unit - 45 mm

Trimming unit for straight caps and fiber caps for thin edges

For straight or chamfered trimming on thin edging; unit to be pivoted manually to 10 degrees, single motor.

  • Optional pneumatic pivoting feature

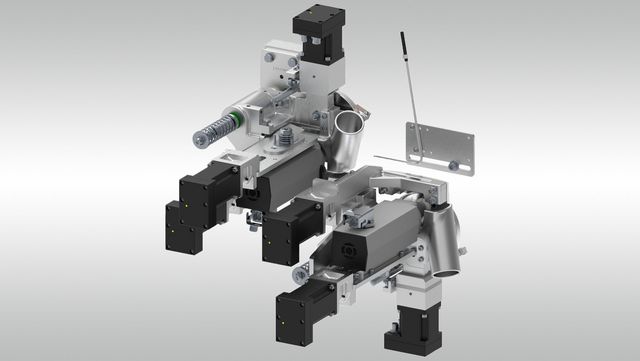

Cutter unit 1052

Multifunction cutter unit for flush cut on edging with thickness up to 3 mm, radiuses up to 3 mm. Including quick adjustment flush / radius as well as diamond tipped tools.

scraper unit (optional)

Perfect finish – generous finishing area.

  • For perfect smoothing of radiuses and chamfers on plastic edging.

Flat scraper (standard feature)

Perfect finish – generous finishing area.



  • The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.





Buffing unit (standard feature)

Perfect finish – generous finishing area.



  • Polishing for maximum gloss; for complete finishing.






Options for extension

Energy savings made easy

The intelligent ECO MODE energy management for HOLZ-HER CNC machines not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


„Leim“-Rollen Sie noch oder sparen Sie schon?

Are you already saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system..

Learn more



Further information

Technical data

Open table
