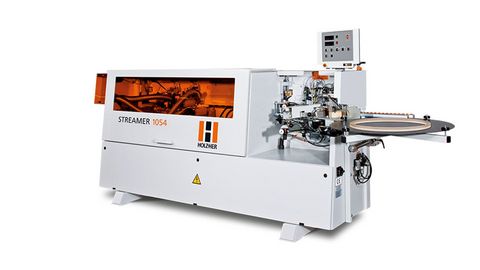

Edgebander STREAMER 1054: Impressive Performance Spectrum Including Jointing

Die STREAMER 1054 bietet ein Novum: Fügefräsen in der Kompaktklasse

The edgebander STREAMER 1054 offers a new feature: Jointing cutting in the compact class. The basic idea behind the entire STREAMER series is to achieve excellent results within a very small space. The edgebanding machine STREAMER 1054 was also designed for efficient, high speed work – it is ready to used immediately. At 3.55 meters, it is extremely compact and has a great unit package for perfect edging. As with the large models, the panels in the STREAMER 1054 are prepared by a jointing cutter unit for the edgebanding process.


Here is what the HOLZ-HER STREAMER series offers

Technical Details

We know what you need: The HOLZ-HER control

Mit der übersichtlichen Steuerung ist Ihre HOLZ-HER Kantenanleimmaschine einfach und schnell zu bedienen

Too bad everything is not as easy to operate as our HOLZ-HER controls.

With our clear controls, your HOLZ-HER edgebander is simple to operate intuitively.

  • The HOLZ-HER GluJet system is equipped with precise temperature control for glue application over two heating circuits.
  • Simple edge feeder switch-over from cut-length to coil edging.
  • Trimming unit can be pivoted pneumatically with control panel (optional feature).
  • Selection switch for optional flat scraper (ON/OFF).

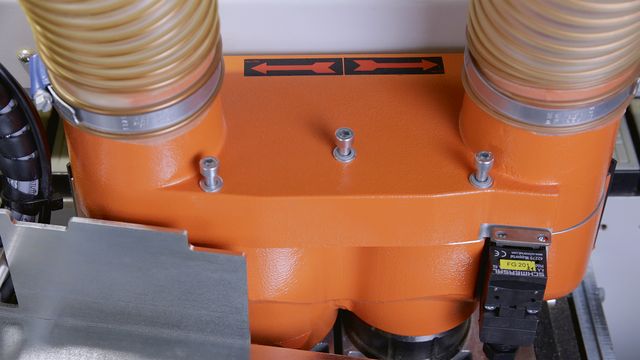

Jointing cutter unit - 45 (60) mm

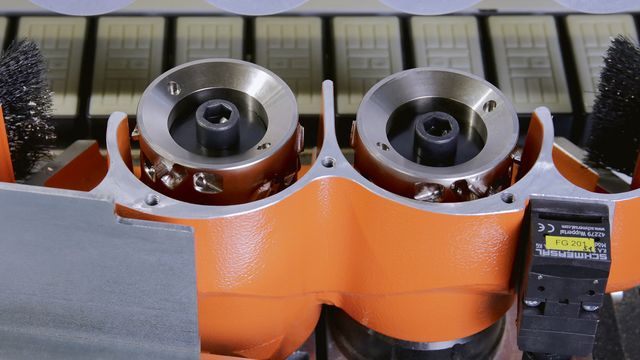

Jointing cutter unit
For perfect edge appearance and top quality, all HOLZ-HER edgebanders are equipped with diamond tipped cutters.

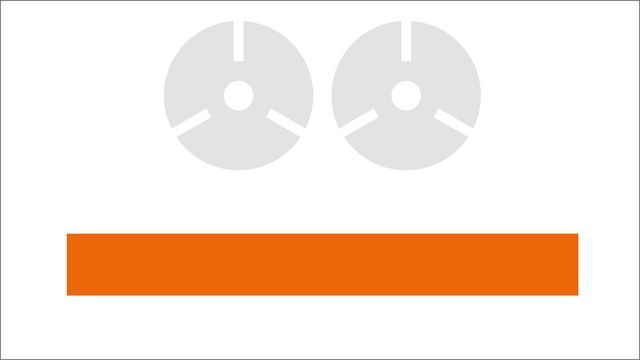

Jointing cutter unit

Cut edges often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange. Including height adjustment for optimum utilization of cutters.

  • Optionally available with working height of 60 mm.

Edging feed

Kantenzuführung
Kantenzuführung

Fully automatic, user-friendly feeder for coiled edging as well as single strip feeder. Gentle material handling with transport belts for edging transport and automatic edge recognition.

An edging separator is available (as an option) for practical processing of packages of edging strips.

Pressure unit

Druckwerk
Druckwerk

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller motor-driven, two subsequent pressure rollers.

Pneumatic, application-controlled pressure unit (optional).

The most flexible glue application system on the market

GluJet - Das flexibelste Kleberauftragssystem am Markt

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Visual zero joints with PUR glue – allowing use in wet areas – are natural for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Trimming unit - 45 (60) mm

Kappaggregat pneumatisch - 60 mm
Kappaggregat pneumatisch - 60 mm

For straight or chamfered trimming on thin edging; unit to be pivoted manually to10 degrees, single motor.

  • Optionally available with 60 mm working height, pivots pneumatically.
    High quality version with stable cast stand and two sawing motors each on two guides.

Cutter unit

Fräsaggregat pneumatisch

Multifunction cutter unit for flush cut on edging with thickness up to 6 mm, radiuses up to 3 mm.
Including quick adjustment flush / radius as well as diamond tipped tools.

Scraper unit (optional)

Ziehklingenaggregat
Ziehklingenaggregat

Perfect finish – generous finishing area.

  • For perfect smoothing of radiuses and chamfers on plastic edging.

Flat scraper with plunge control

Surface scraper for the HOLZHER streamer 1057 XL for perfect finishing
Surface scraper blade for the edge banding machine Streamer 1057 XL for perfect reworking

Perfect finish – generous finishing area.



  • The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.





Flat scrapers with pre and post-sensing

Flächenziehklinge mit Vor- und Nachtastung für Kantenanleimen

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Buffing unit

Buffing unit for polishing workpieces in post-processing - edge banding machine Streamer HOLZHER
Buffing unit for polishing workpieces in post-processing - edge banding machine Streamer HOLZHER

Perfect finish – generous finishing area.

  • Polishing for maximum gloss; for complete finishing.

Options for extension

„Leim“-Rollen Sie noch oder sparen Sie schon?

Are you already saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.
