SECTOR 1260 automatic vertical panel saw: Fully Automatic for Maximum Cutting Quantity and Easy Operation

Vertical panel saw SECTOR 1260 from Holzher

Perfect ergonomic design, absolute precision and angular accuracy are the convincing features of the SECTOR 1260 vertical panel cutting saws. This upright panel saw allows one-man operation from panel storage to finished, precisely cut section and is appreciated for its basic, solid design.

The SECTOR 1260 is the fully automatic panel saw from HOLZ-HER. It is distinguished by its automatic mode, allowing it to manage large cutting quantities in minimum time. After positioning the panel, it is only necessary to press a button to start the machine process. Rapid cutting cycles are guaranteed by its infinitely adjustable feed rate of up to 25 m/min.

The range of applications for HOLZ-HER circular panel saws can be extended as required with genuine HOLZ-HER accessories. For example with the HOLZ-HER patented Super Cut prescoring system. This system operates with two scoring blades to score laminated panels ensuring tear-free edge quality right down to one tenth of a millimeter. A further option is the professional cut optimization software, Opti-Base V-Cut for perfect optimization results through complete material utilization.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER SECTOR 1260 automatic offers

The automatic mode of the SECTOR 1260 automatic
Cutting optimization with Opti-Base V-Cut

Technical Details

Automatic version

The Sector 1260 automatic for continuous feed speeds

In automatic mode, the SECTOR 1260 automatic can automatically plunge, saw, and plunge out at the push of a button. The unit can be ordered back to the starting point at the push of a button.

The automatic mode ensures a constant feed rate and thus guarantees the best cutting results. The feed speed can be continuously adjusted by the operator from 0 - 25 m/min.

In combination with the infinitely variable speed control, you can achieve the best cutting results even with plastics, for example.

By deactivating the automatic mode, the machine can of course also be operated completely manually.

Cut optimization with Opti-Base V-Cut

Cutting optimization with Opti-Base V-Cut

Cut optimization – Step-by-step instructions for effective panel cutting

With the professional OptiBase V-Cut cutting optimization feature from HOLZ-HER, you always get the best optimization result thanks to perfect material utilization. Clearly arranged user surface and 10” touch screen for simple, quick operation and management of orders, material and parts lists. The label printer for HOLZ-HER machines, which is included in the package, ensures clear identification of parts.

The way to support cutting optimization

  • The optimization software for vertical panel cutting saws means you can optimize your cutting plans effortlessly.
  • Waste material is significantly reduced and professionally managed through labeling.
  • The choice is yours – you can either import the cutting plans created in your office via network connection / USB or enter them directly on the touch screen.
  • Perfect material utilization and maximum yield thanks to intelligent software.

Your benefits

  • Importing parts lists from various branch programs (Cabinet Control, Imos, OSD, CSV interface, etc.)
  • Writing parts lists in the office incl. Edging / Coverings / Oversize dimensions / Production sequence / etc.
  • Printing labels with all known information such as: Data matrix / Com. / Dimensions / Edgings / Coverings / etc.
  • Fast handling at machine, because optimization can be accomplished previously in the office and the monitor shows all data and work steps
  • Remnants are managed and booked (remnant store also completely active)
  • Programmable remnant store for panels and coverings
  • Network connectivity (machine can be integrated into network so that all remnants are also known in the office and optimized results can be displayed directly on machine.)
  • Plug to Play

Prescoring for precision cuts

SuperCut is the patented HOLZ-HER prescoring system.

SuperCut is the patented HOLZ-HER prescoring system. It provides ready-to-glue cuts with just one basic adjustment.

  • Two carbide blades score the surface of coated panels exactly to the width of the saw blade.
  • The circular saw blade then cuts the panel without chipping the hard, brittle or fibrous top layer.
  • The result is a smooth edge for further processing.
  • SuperCut can be adjusted easily on a dimension scale.
  • SuperCut can be retrofitted at any time on all SECTOR panel saws.

Top and bottom sawing beams

Saw bar above with pneumatic locking, can be operated by the control panel at the press of a button.
Saw bar below with pneumatic locking, can be operated by the control panel at the press of a button.

Top and bottom sawing beams with pneumatic arrest, can be operated from the control panel at the touch of a button. Including automatic interface detection for vertical cut.

Sawing unit for horizontal cutting

Saw unit including pneumatic locking for horizontal cutting

Sawing unit including pneumatic arrest for horizontal cut and electrical fine adjustment of measurement directly on the control panel.

Digital horizontal cutting with motor-driven precision adjustment

The sawing unit is equipped with a pneumatic brake as a standard feature.

The dimension for the horizontal cut can be precisely adjusted to an accuracy of 1/10 mm at the touch of a button with the adjustment motor included as a standard feature. As an alternative the setting can also be read off on the setting scale.

Digital longitudinal stop with fine adjustment

Digital longitudinal stop with fine adjustment

Digital dimension display for vertical cut, including fine adjustment of hardened linear guide (optional).

GeoMetric angle cutting attachment

Angular cutting device GeoMetric With the mobile angle cutting device, cutting angles of up to 45 ° can be carried out in a simple way

The mobile angular cutting device allows angular cuts up to 45° to be completed easily. For this purpose simply clamp the angular cutting device to the saw and set the angle in degrees. Two adjustable vacuum units hold the panel in place. Then cutting can be accomplished in the vertical or horizontal direction. A simple conversion feature allows the angular cutting unit to be attached on the left or right side of the cut.

Strip Stop

The strip stop ensures repeatable cutting to the width of the workpieces.

The strip stop ensures a uniform cut to the width of the workpiece. Once set - every cut is the same

Quality on your own - from the steel plate to the finished machine

In house production of frames for vertical panel saws.

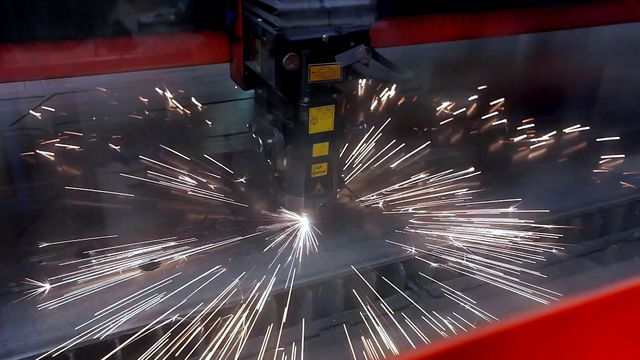

Up to 2200 tons of steel and aluminum are used in HOLZ-HER's own frame construction. A laser cutting unit with fully automatic charging optimizes cutting steel plates with thicknesses up to 25 mm. This ensures that HOLZ-HER can use the ideal material thickness for all construction parts where rigidity is relevant.

With a nominal pressing force of 400 tons, multiple hydraulic trimming presses ensure perfect component shape with automatic material thickness measurement and pressure control.

The individual parts are welded together very carefully. Optimally designed welding equipment ensures high quality consistency for your machine.

The completely welded frames are milled with high precision on a number of long-bed cutting machines. This ensures that all surfaces are optimally prepared for later attachment of guides and equipment.


Further information

Brochures

Simple, fast and sustainable: more details in a downloadable PDF document.

SECTOR 1255|1260 brochure (PDF, 2 MB)

Technical data

Open table

Further images

Technical data and dimensions SECTOR 1255/1260
The vertical panel saw SECTOR in the workshop
