Edge Control

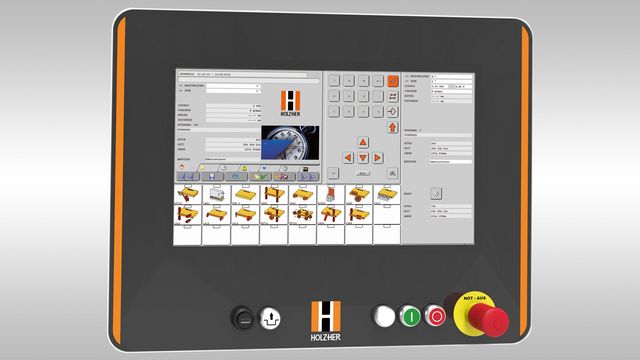

21.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

• 21.5" touch screen color monitor - standard feature.
• Graphic user interface, all information displayed in plain text and/or graphic form.
• Simple operation – rotating and swiveling control panel at eye height.
• Programs are simple to call with program names and numbers.
• Large program memory for all desired applications.
• Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
• Service reports in clear text.
• Individual management for up to ten users with password protection and individual authorization.
• Network connectivity.
• Online maintenance, rapid exchange of data with HOLZ-HER service department.
• Barcode interface.

The optimized, automatic control for the extensive pressure adjustments with plausibility checks allows HOLZ-HER to realize automatic glue quantity control matched to the specific requirements. Moreover, an adaptive trimming blade automatically adapts the pressure of the trimming blade to the edge thickness. Finally, an adaptive pressure unit optimally adjusts the pressures of the individual pressure rollers to the specific application for perfect results every time. This reduces adjustment errors and reject quotas to a minimum.

• [1] Automatic glue quantity control
• [2] Adaptive trimming blade
• [3] Adaptive pressure unit

Fully automatic, user-friendly feed of cut-length and coiled edging; conversion without tools. Gentle material handling with transport belts for edge feeding and light barrier for edging recognition.

Cut edges often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange. Including height adjustment for optimum utilization of cutters.

• Optionally available with working height of 60 mm.

Heat-up, glue change and cleaning require only 3 minutes each

Hardly any other glue application system offers this flexibility with such energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Invisible joints with PUR glue, which can also be used in wet areas, are an obvious choice for HOLZ-HER customers.

Brilliant appearance, regardless of material - Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections. HOLZ-HER sets the trends for tomorrow today.

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller with motor drive and pneumatic application control. Available with two subsequent pressure rollers. Motor-drive high speed servo-axis available as optional feature.

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-5 degrees. Including diamond tipped tools.

Further equipment:

• Integrated chip collection in tool.
• ProLock system.
• Also available with four NC servo-axes

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

• Diamond tipped tool for long service life.
• Integrated chip collection in tool.

Perfect finish – generous finishing area.

• For perfect smoothing of radiuses or chamfers on plastic edging.
  Also available with four NC servo-axes

Perfect finishing – generous post-machining area for up to three finishing units (depending on model).

• The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.

Clean surface finishing with pre- and post-sensing 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications. Can be selected optionally in lieu of the standard flat scraper blade.

Polishing for maximum gloss; for complete finishing

A release agent is sprayed on to a precisely defined area by special spray nozzles in the entry area. This prevents any glue or contamination residues from adhering These glue and contamination residues are removed reliably by the spraying unit (for cleaning agent) in the discharge area in combination with the buffing unit (available as option for AURIGA 1308 XL).
