CNC Machining Center EVOLUTION 7405 Connect: Complete CNC machining with Lamello P-System compatibility
The EVOLUTION 7405 Connect is the all round talent in the EVOLUTION family. Just as the 7405 4mat it also offers users precision edge routing for all four workpiece edges and the resulting complete formating.
The Connect version also provides entirely new capabilities, such as machining pockets and grooves, e.g. for P-System connectors from Lamello. Naturally, you can cut pockets for these - as well as other - connectors on all four edges as well as in the X and Y directions. For this purpose HOLZ-HER has supplemented the EVOLUTION to include an additional seventh tool changer location as well as a newly developed attachment and the matching programming macro.
The technical data for the EVOLUTION series speaks for itself: A vertical pass-through dimension of 1,200 mm combined with unlimited longitudinal processing and minimum space requirements. Material thicknesses of 8 to 70 mm make the vertical machining centers from HOLZ-HER all-round machines for producing everything from drawers to body parts, furniture fronts and rear walls; in short complete machining of all your products.
Above all, the EVOLUTION 7405 Connect has provisions for arresting the workpiece at the rear, permitting the entire circumference to be machined including horizontal drilling operations without reclamping. The solid design of the EVOLUTION series guarantees maximum machining quality. Moreover an optional door package, comprising a specially developed angle drive for lock boxes and a lock box milling tool, supplements the capabilities offered by HOLZ-HER’s EVOLUTION 7405 connect.
Different requirements - different prices
The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.
Personal advice – for higher productivity and greater efficiency
Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.
Doors Ready - The optional door package
The EVOLUTION models are now more versatile than ever in terms of workpiece height thanks to an increased passage size of 1,200 mm.
The optional EVOLUTION door package, consisting of a specially developed angle gear for lock boxes and a lock box cutter, expands the capabilities of this vertical CNC machine from HOLZ-HER.
The door package allows complete machining of door leaves with a maximum thickness of up to 70 mm. This process machines the hinge side and lock side in two clamping operations. The 16 mm dia. shat cutter allows a cutting depth of up to 115 mm making it possible to cut lock boxes with different bolt dimensions. Handle and lock holes can also be drilled precisely using HOPS macros. After turning and reclamping the door leaf, it is possible to recess hinges for rabbeted doors as well as install concealed hinges or fittings for object doors.
EVOLUTION for Doors - Door machining for practical carpenters
The EVOLUTION door package is perfect for practical use in machining doors. In addition to cutting lock boxes, latch holes and hinges, the package provides features to mill cutouts for door closers and draft blockers. This package offers modern carpenters everything they need to produce doors. Maximum benefit in only 5 square meters of floorspace.
xcut package for optimum strip processing
Simple. Efficient. Cost saving - From panel strips to finished furniture.
With the xcut package the EVOLUTION automatically produces the required workpieces from panel strips previously cut in the longitudinal direction. This xcut mode completely eliminates cross-cuts otherwise required.
The xcut software lists all pending jobs on the machine monitor. This provides the machine operator with a perfect overview of all jobs. The strips are cut to the precise length, milled on 4 sides and drilled as required. This process ensures that the entire surface of the panel strips is utilized optimally.
In the so-called edge mode, you can also format the length of already edged strips without tearing. This makes the EVOLUTION 7402 and 7405 with optional xcut package a center for efficient carcass production.
- xcut table – Extended entry table for secure guidance of long panel strips.
- xcut software package – Including CabinetSelect with over 400 pre-programmed pieces of carcass furniture. Custom adaptation with CabinetControl Pro or CabinetControl Pro.
- Workpiece database – “Warehouse” including open CSV interface Hop import and sorting feature.
- Laser measurement – Automatic measurement of strip width and length with remnant recognition.
- Automatic formating – Length and width formating with X and Y milling.
- Part identification – Simply read in workpiece programs and mark using optional barcode scanner and Easy Label printer with labeling software.
The Connect Package: Machining of connector cutouts on all 4 edges
With the EVOLUTION 7405 Connect you are free to choose your connection technology
The macros included in the scope of delivery mean that, in addition to drilling dowel holes and countersinking Cabineo connectors, the EVOLUTION 7405 Connect also allows you to cut pockets for Lamello Clamex connectors in the X and Y directions, as well as in all four edges of the workpieces. You decide which connectors you need for your application.
The Connect package includes the following features:
- One X/Y tool changer
- EVOLUTION angle gear for Lamello Clamex cutouts
- Original Lamello P system tool set
- CAMPUS macro for Lamello Clamex pockets
Free choice of connectors
With the EVOLUTION 7405 Connect you are free to choose your connection technology
You decide which connectors you need for your application.
Unique Pic2Plate Software
HOLZ-HER offers the unique, patented Pic2Plate software allowing image data to be copied and vector cutting programs to be generated quickly and easily (optional on 7405 4mat and 7405 Connect).
- Supplement your product portfolio to include light-reflex engraving with depth effect.
- Generate unique visible and tactile works of art on your HOLZ-HER EVOLUTION CNC.
- A normal photo or scan is all you need to create works of art in just a few steps for many types of applications and from different types of panel materials.
- The Pic2Plate-Software is easy as pie to use!
- The integrated post processor guarantees seamless transfer of the milling data to your HOLZ-HER CNC using CAMPUS software.
CabinetControl Pro - Perfect 3D spatial planning with carcass generator
CabinetControl Pro is the upgrade for professional use for furniture planning and customer presentation. Plan your furniture or design entire living environments. Support your customers’ imagination for quicker decisions. Present the planned furniture as realistically as a photograph from all perspectives directly to your customer on site.
- Plan your furniture in varying room situations: Clothes closets, closets beneath slopping roofs, dormer closets, kitchens, bathroom furniture, office furniture, wardrobes, sliding door closets, living room furniture, sideboards, built-in cabinets, audio and TV furniture, counters, beds, tables, etc.
- As a cabinet maker you know how furniture is built. With only a few entries you can proceed directly to the final planning stage, without any familiarity with CAD. From there it is only a touch of a button and all data is available for production. This takes you simply and quickly to the planning and work preparation stages.
- Together with your customer you plan and present their furniture quickly and clearly. You can add any spontaneous requests directly and your customers know immediately and precisely what they are getting, making it easier for your customer to reach a decision and for you to complete the order.
Right along with the planning, the program automatically generates the cutting data as well as CNC programs for your HOLZ-HER panel saw and HOLZ-HER CNC machine. The additional TrunRAY option illustrates the generated renderings perfectly.
4mat means complete processing
Complete processing on all 4 sides with lengths up to 800 mm without reclamping
- Simply adjust the bottom jointing dimension – the rest is accomplished automatically.
Significantly shorter machining times
- while maintaining maximum precision and machining quality.
Generous machining dimensions
- Height up to 920 mm and length up to 2,500 mm without additional supports. And still extremely space-saving and compact.
Fully automatic thickness adaptation for workpieces from 8 to 70 mm
- Ideal for rear walls, sides, fronts and even kitchen counter tops. These can be processed in any length in workshops with appropriate space and safety intervals.
Complete machining – convincingly good
The EVOLUTION 7405 4mat offers truly unique features. Precise edge routing on all four workpiece edges allows panels to be formatted completely. The result is perfectly formated workpieces completely grooved and profiled on all edges.
With the Performance package upgrade to the 10.3 kW HSK spindle with tool changer for 6 tools, the machine also allows profile milling, point thinning, engraving, etc. with automatic tool change in this machine class. The EVOLUTION 7405 4mat is therefore a full value machining center ready for implementation of an infinite variety of design ideas.
- Complete processing on all 4 sides in one clamping operation with the EVOLUTION 7405 4mat. Simply adjust the bottom jointing dimension – the rest is accomplished automatically.
Unique clamping concept
Fully automatic positioning of suction cups. Automatic contact pressure independent of material thickness for optimum results and precise dimensions.
Whether panel material or solid wood: The automatic vacuum clamping system on the EVOLUTION Series ensures a secure hold while handling the material gently.

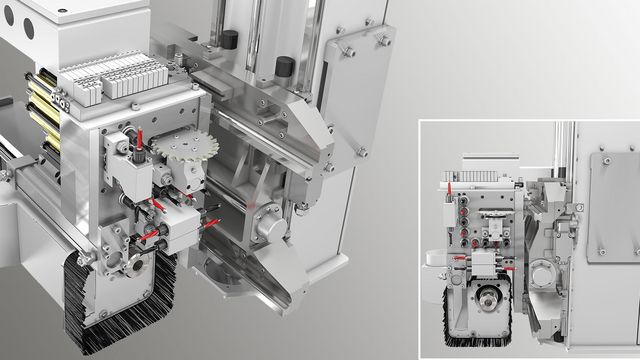

Perfectly equipped - standard drilling head
15 drilling spindles for 5 in-line holes each in X and Y directions as well as 6 horizontal drills and integrated sawing unit for quick and precise results. As an option, the EVOLUTION series can also be equipped for even higher performance with an XL-drilling head, with up to 22 drilling spindles and grooving saw.

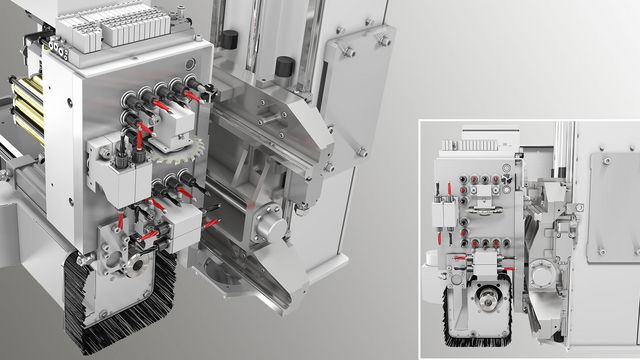

Extra large XL drilling head
For even more drilling power - also with XL drilling head
Thanks to the XL drilling head, the range of applications and the enormous versatility of the vertical machining center is further increased. Equipped with up to 22 spindles, the head can be generously equipped for drilling rows of holes, structural and through-holes - reducing time-wasting drill changes.
Above all the possibility to equip the head with an additional double-drilling spindle in the Y direction and an extra strong spindle for hinge drill bits brings a unique level of flexibility. This allows 5 mm and 8 mm holes to be drilled in the sides in both X and Y directions – flexibility to your advantage.
For holding all types of material
HOLZ-HER offers a variety of special suction cups for various types of material and processing requirements. This makes the EVOLUTION series even more versatile.
Standard suction cups with and without sensing valve
- Ideal for processing panels
Solid wood suction cups
- Ideal for extremely heavy workpieces and applications with solid wood
- You can change over your EVOLUTION machine for use on special materials within the shortest possible time.
Automatic tolerance correction
Determination of exact length dimension and automatic correction of tolerances for dimension-dependent drilling. Perfect optional supplement for high precision drilling, e.g. for workpieces which have already been edged.
Shorter processing times
Easy on material and time-saving, because workpieces with lengths up to 1,500 mm can be machined without reclamping.
- Up to 35% shorter machining cycles.
Maximum efficiency with HOLZ-HER machine networking
HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.
