Edgebander SPRINT 1327: Maximum Productivity - Variable Feed and Shortest Workpiece Intervals

Every unit on the new SPRINT 1327 is distinguished by its precision processing. All possible equipment versions are perfectly matched to one another and designed for maximum endurance and feed rates.

Standard features include variable feed from 10 - 18 m/min as well as automatic pressure beam adjustment. An edge feeder with synchronous drive and pressure unit are also standard features.

The SPRINT 1327 offers you two models. The SPRINT 1327 classic includes complete equipment for jointing, corner rounding and finishing work. The SPRINT 1327 massiv is equipped with two cutter units (instead of one corner rounding unit) for easy processing of solid wood edging with a thickness up to 15 mm without changing tools.


Technical Details

iTronic for intelligent automation

Adaptivpaket für intelligente Automatisierung

iTronic operating components

1. Adaptive trimming blade

Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:

  • Always the right pressure for different types of edging
  • Prevents unnecessary vibration
  • Reduces wear

2. Adaptive pressure unit

The contact pressure of the individual pressure rollers is adapted perfectly to the application by an intelligent pneumatic system. Your advantages:

  • Reduces reject quotas to a minimum
  • Eliminate sample workpieces
  • Optimum machining results even for continuously changing applications

3. Automatic glue quantity control

Automatic, requirement-adapted control of glue quantity with program selection: Always optimum glue application for:

  • Various types of panels, e.g. chipboard or MDF
  • Various panel thicknesses
  • Various feed rates
  • EVA or PUR glue
  • Adaptation to processing parameters for glue from different manufacturers

4. Automatic cleaning routine

Integrated, fully-automatic purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine, full automatically, with the correct quantity of cleaner, at the right temperature and contact pressure. (Cleaning is required after 48 h = PUR reaction time).  Your advantages:

  • Best system on the market
  • PUR glue always under control
  • Avoids errors during cleaning operation

5.  Remaining glue quantity indicator

The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:

  • Operator knows how many running meters can still be produced at all times
  • Professional supervision of the cleaning process
  • Optimization of remaining quantity of glue in system at time of cleaning process.

EdgeControl - simple and intuitive

HOLZ-HER PC-Steuerung - Zukunftssicher durch hohe Standards

Edge Control

18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 18.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface

SYNCHRO edging feed

Kantenzuführung SYNCHRO
Kantenzuführung SYNCHRO
Kantenzuführung SYNCHRO

The edge feeders with SYNCHRO drive. With its synchronous adaptation to the feed rate, this feeder guarantees short intervals between workpieces and simultaneously optimizes edging protrusions.

Shallow feed angle thanks to nozzle design – easy feeding of solid wood edging up to 15 mm.

Jointing cutter

Fügefräsen

Cut edges often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange, tool dia. 70 mm.

  • Including height adjustment for optimum utilization of cutters.

Maximum flexibility with 6-fold edging feed

Einfaches Handling – hohe Flexibilität mit 6-fach-Kantenzuführung
Einfaches Handling – hohe Flexibilität mit 6-fach-Kantenzuführung
Einfaches Handling – hohe Flexibilität mit 6-fach-Kantenzuführung

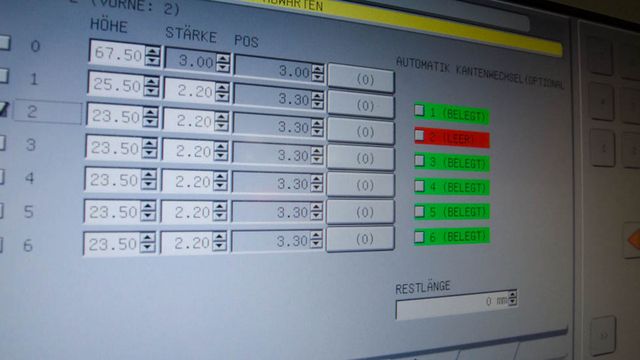

The automatic 6-fold edge feeder offers the advantage of flexibility to users with continuously changing edging material as well as those using the same edging continuously. The automatic chute change feature ensures that edging is aways available, saving you valuable set-up time. Including a seventh auxiliary chute for cut-length edging as well as a 6-fold edging carriage with arresting universal rollers.

Pressure unit

Druckwerk
Druckwerk

Pressure unit with synchronous drive and automatic adaptation to feed rate. Straight and tapered pressure rollers for perfectly glued joints.

  • With NC servo-axis for motorized adjustment to specific edge thickness (optional).

Pneumatic trimming unit - 60 mm

Kappaggregat pneumatisch - 60 mm
Kappaggregat pneumatisch - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Pneumatic cutter unit

Fräsaggregat pneumatisch
Fräsaggregat pneumatisch

Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-15 degrees. Including diamond tipped tools.
Further equipment: Integrated chip collection in tool, ProLock system.

  • Also available as option: Fully automatic control with four NC servo-axes and automatic pivot adjustment.

Flush cutting unit

Bündigfräsaggregat bis 15 mm
Bündigfräsaggregat bis 15 mm
Bündigfräsaggregat bis 15 mm

High performance cutter unit for edge thickness up to 15 mm. Two NC servo-axes for cutting with and without edge protrusion (optional).

  • 15 mm edge thickness standard on SPRINT 1327 massiv and 1329 massiv.

Multifunction cutter unit - 4 NC servo-axes

Multifunktionsfräsaggregat 4 NC-Servoachsen
Multifunktionsfräsaggregat 4 NC-Servoachsen
Multifunktionsfräsaggregat 4 NC-Servoachsen

For flush, radius and chamfer cutting including permanently installed diamond tipped tool with patented Air Stream system.

  • Also available with optional fully automatic control with six NC servo-axes.

Copy cutter unit - 60 mm

Kopierfräsaggregat
Kopierfräsaggregat

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Diamond tipped tool for long service life.
  • Integrated chip collection in tool.
  • Working height of 60 mm.

Shaping cutter unit with 4 NC servo-axes

Formfräsaggregat 4 NC-Servoachsen
Formfräsaggregat 4 NC-Servoachsen
Automatischer Pendeltaster kopiert stirnseitig ohne Materialüberstand

Shaping cutter unit for corner rounding. Machining with two cutter motors for a wide variety of postforming profiles. Standard equipment includes four NC servo-axes as well as two diamond tipped cutters with CM technology and ProLock quick change chuck. Maximum workpiece thickness 60 mm.

  • Pendulum sensor (optional)
    Automatic pendulum sensor copies rear without material protrusion and leaves the optimum edge protrusion for the longitudinal edge for subsequent machining with the radius scraper.

Scraper unit

Ziehklingenaggregat
Ziehklingenaggregat

For perfect smoothing of radiuses and chamfers on plastic edging.

  • Also available with two NC servo-axes (optional).
  • High gloss package with four NC servo-axes (optional).

Flat scraper

Flächenziehklinge
Flächenziehklinge

Clean post-processing of surfaces. Application-controlled with two reversible blades, manual post-processing not required. Standard setup.

Flat scrapers with pre and post-sensing

Flächenziehklinge mit Vor- und Nachtastung für Kantenanleimen

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Buffing unit

Schwabbelaggregat
Schwabbelaggregat

Polishing for maximum gloss; for complete finishing. Standard setup.


Options for extension

„Leim“-Rollen Sie noch oder sparen Sie schon?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more


Energiesparen leicht gemacht

Mit dem intelligenten Energiemanagement ECO Mode für HOLZ-HER Kantenanleimmaschinen schonen Sie nicht nur die Umwelt sondern sparen dazu auch noch Geld.

Learn more


Ein durchgängiger Maschinenverbund erlaubt Ihnen eine hoch effiziente Fertigung

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more
