Edgebander SPRINT 1329: Flexible for All Edging Trends - three High Performance Models

Edgebander Sprint 1329

The SPRINT 1329 provides multifunction technology at the highest level. Motor-driven adjustable axes are used for the entire machine. This HOLZ-HER machine thus allows conversion to precisely reproducible dimensions at the touch of a button, without having to open the machine hood.

The SPRINT 1329 is available in three high performance versions for complete processing of state-of-the-art edging and panel materials. This ensures flexibility for every new edging trend.

Our top seller "premium" model - with its dual motor corner rounding unit for edge thicknesses up to 15 mm and workpiece thicknesses up to 60 mm - satisfies all desires for processing flexibility . The "massiv" model - with its two cutter units - allows easy processing of solid wood edging with a thickness of up to 15 mm without changing tools, while the "grooving" version offers an NC-controlled, fully automatic, pivoting grooving unit.


Technical Details

EdgeControl - simple and intuitive

HOLZ-HER PC-Steuerung - Zukunftssicher durch hohe Standards

Designed to perfection - the HOLZ-HER PC control

The HOLZ-HER PPC 221 and PPC 231 Edge Controls provide extremely high performance making them a paragon for simple operation. A high-end industrial PC with generous features is included. Set-up and conversion of the machine has never been so rational.

  • VGA color monitor PPC 221 (standard) or 15"-touchscreen PPC 231 (optional).
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connection with touch screen (optional).
  • Online maintenance (optional), rapid exchange of data with HOLZ-HER service department.
  • Barcode interface (optional).

Adaptive package for intelligent automation

Adaptivpaket für intelligente Automatisierung

The optimized, automatic control for the extensive pressure adjustments with plausibility checks allows HOLZ-HER to realize automatic glue quantity control matched to the specific requirements. Moreover, an adaptive trimming blade automatically adapts the pressure of the trimming blade to the edge thickness. Finally, an adaptive pressure unit optimally adjusts the pressures of the individual pressure rollers to the specific application for perfect results every time. This reduces adjustment errors and reject quotas to a minimum.

  • [1] Automatic glue quantity control
  • [2] Adaptive trimming blade
  • [3] Adaptive pressure unit

SYNCHRO edging feed

Kantenzuführung SYNCHRO
Kantenzuführung SYNCHRO
Kantenzuführung SYNCHRO

The edge feeders with SYNCHRO drive. With its synchronous adaptation to the feed rate, this feeder guarantees short intervals between workpieces and simultaneously optimizes edging protrusions.

Shallow feed angle thanks to nozzle design – easy feeding of solid wood edging up to 15 mm.

Jointing cutter

Fügefräsen

Cut edges often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange, tool dia. 70 mm.

  • Including height adjustment for optimum utilization of cutters.

The most flexible glue application system on the market

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Visual zero joints with PUR glue – allowing use in wet areas – are natural for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Druckwerk
Druckwerk

Pressure unit with synchronous drive and automatic adaptation to feed rate. Straight and tapered pressure rollers for perfectly glued joints.

  • With NC servo-axis for motorized adjustment to specific edge thickness (optional).

Pneumatic trimming unit - 60 mm

Kappaggregat pneumatisch - 60 mm
Kappaggregat pneumatisch - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Flush cutting unit

Bündigfräsaggregat bis 15 mm
Bündigfräsaggregat bis 15 mm
Bündigfräsaggregat bis 15 mm

High performance cutter unit for edge thickness up to 15 mm. Two NC servo-axes for cutting with and without edge protrusion (optional).

  • 15 mm edge thickness standard on SPRINT 1327 massiv and 1329 massiv.

Pneumatic cutter unit

Fräsaggregat pneumatisch
Fräsaggregat pneumatisch

Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-15 degrees. Including diamond tipped tools.
Further equipment: Integrated chip collection in tool, ProLock system.

  • Also available as option: Fully automatic control with four NC servo-axes and automatic pivot adjustment.

Multifunction cutter unit - 4 NC servo-axes

Multifunktionsfräsaggregat 4 NC-Servoachsen
Multifunktionsfräsaggregat 4 NC-Servoachsen
Multifunktionsfräsaggregat 4 NC-Servoachsen

For flush, radius and chamfer cutting including permanently installed diamond tipped tool with patented Air Stream system.

  • Also available with optional fully automatic control with six NC servo-axes.

Copy cutter unit - 60 mm

Kopierfräsaggregat
Kopierfräsaggregat

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Diamond tipped tool for long service life.
  • Integrated chip collection in tool.
  • Working height of 60 mm.

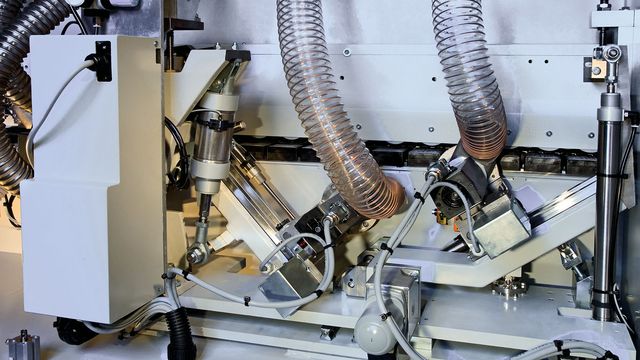

Shaping cutter unit with 4 NC servo-axes

Formfräsaggregat 4 NC-Servoachsen
Formfräsaggregat 4 NC-Servoachsen
Automatischer Pendeltaster kopiert stirnseitig ohne Materialüberstand

Shaping cutter unit for corner rounding. Machining with two cutter motors for a wide variety of postforming profiles. Standard equipment includes four NC servo-axes as well as two diamond tipped cutters with CM technology and ProLock quick change chuck. Maximum workpiece thickness 60 mm.

  • Pendulum sensor (optional)
    Automatic pendulum sensor copies rear without material protrusion and leaves the optimum edge protrusion for the longitudinal edge for subsequent machining with the radius scraper.

Grooving unit

Nutaggregat
Nutaggregat

Clockwise direction. With two NC servo-axis for groove depth adjustment as well as groove position above control panel as a standard feature. Pivots 0 - 90 degrees including grid holes at increments of 11.25 degrees. Including plunge control.

Scraper unit

Ziehklingenaggregat
Ziehklingenaggregat

For perfect smoothing of radiuses and chamfers on plastic edging.

  • Also available with two NC servo-axes (optional).
  • High gloss package with four NC servo-axes (optional).

Flat scraper

Flächenziehklinge
Flächenziehklinge

Clean post-processing of surfaces. Application-controlled with two reversible blades, manual post-processing not required. Standard setup.

Flat scrapers with pre and post-sensing

Flächenziehklinge mit Vor- und Nachtastung für Kantenanleimen

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Buffing unit

Schwabbelaggregat
Schwabbelaggregat

Polishing for maximum gloss; for complete finishing. Standard setup.

Front and rear spraying units

Sprüheinrichtung vorn und hinten
Sprüheinrichtung vorn und hinten

Spraying units for parting agents and cleaning agents for feed and discharge area. Anti-static, coolant and lubricant – electronically controlled by special nozzles - for a perfect edge finishing.


Options for extension

Energiesparen leicht gemacht

Mit dem intelligenten Energiemanagement ECO Mode für HOLZ-HER Kantenanleimmaschinen schonen Sie nicht nur die Umwelt sondern sparen dazu auch noch Geld.

Learn more


Ein durchgängiger Maschinenverbund erlaubt Ihnen eine hoch effiziente Fertigung

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


„Leim“-Rollen Sie noch oder sparen Sie schon?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more
